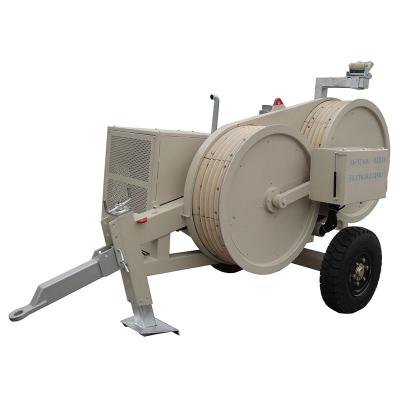

SA-YZ40A Hydraulic Tensioner

• Essential parameter
• Maximum Tension(kN):40
• Continuous Tension(kN):35
• Maximum speed (km/h):5
• Bull wheel bottom of groove diameter(mm):Φ1200
• Number of grooves:5
• Maximum pull-back (kN):40
• Maximum pull-back speed(km/h):3
• Maximum suitable conductor diameter (mm): Φ32
• Engine power /speed (kW/rpm):51/2500
• Dimensions (mm): 3400×1800×2400
• Weight(kg):2800

• Uses
• it’s used for stringing various steel wire ropes ,conductors and earth wires.
• Feature
• Bull wheel with wearproof MC nylon lining segments.
• Infinitely variable tension control and constant tension conductor stringing .
• Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
• Attached hydraulic power output interface to connect hydraulic conductor reel stand .

• Main component
• Engine :Beinei Deutz air cooled diesel engine .
• Main pump/motor : Rexroth (BOSCH)
• Reducer : RR(Italian)
• Main hydraulic valve : Rexroth (BOSCH)
