液压张力机 联系我们:首页 > 产品中心 > 液压张力机

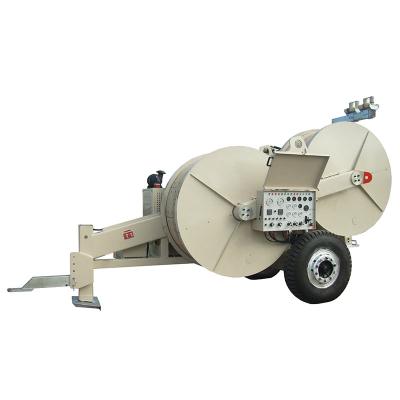

SA-YZ2×70 / SA-YZ2×80 Hydraulic Tensioner

  • 产品型号:SA-YZ2x70、SA-YZ2x80
  • 产品编号:07198、07199
  • 浏览次数:6125

SA-YZ2×70 / SA-YZ2×80 Hydraulic Tensioner

    • Essential parameter
    • Maximum Tension(kN):2×70 or 1×140 ,
      2×80 or 1×160
    • Continuous Tension(kN):2×65 or 1×130,
      2×75 or 1×150
    • Maximum speed (km/h):5
    • Bull wheel bottom of groove diameter(mm):Φ1700
    • Number of grooves:2×5
    • Maximum pull-back (kN):2×63 or 1×126
    • Maximum pull-back speed(km/h):2×1.6
    • Maximum suitable conductor diameter (mm): Φ45
    • Engine power /speed (kW/rpm):82.5/2500
    • Dimensions (mm): 5300×2300×2900
    • Weight(kg):8500
    • Uses
    • it’s used for stringing various conductors and earth wires.suitable for stringing one conductor or two bundle conductors
    • Feature
    • Bull wheel with wearproof MC nylon lining segments.
    • Infinitely variable tension control and constant tension conductor stringing .
    • Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
    • Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand .
    • Main component
    • Engine :Beinei Deutz air cooled diesel engine .
    • Main pump/motor : Rexroth (BOSCH)
    • Main hydraulic valve : Rexroth (BOSCH)
    • Reducer : RR (Italian)
